Sioux Industrial Steam Cleaners

0
PSI Power Washers Home

PSI Power Washers, Inc.
PO Box 191
Wilmont MN 56185

PHONE    507-926-5309
1-800-555-1677

Now in three Locations!



Tea / Harrisburg Exit Location

Wilmont Location







Willmar Location

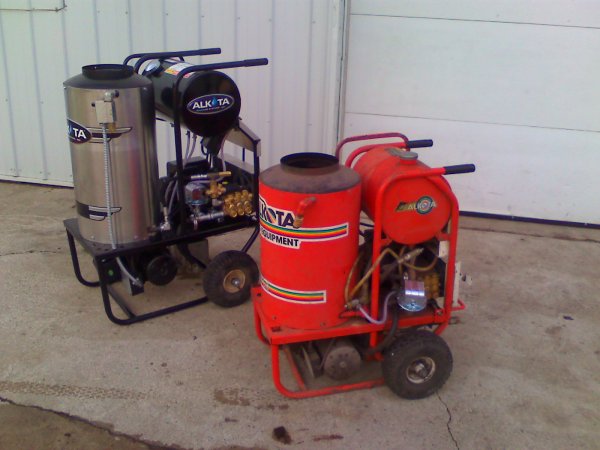

Alkota JR



Alkota Machines

The inside Story



CLEANING CREW
Extreme Series
4X4
Extreme Series
STEAM
NATURAL/LP
GAS ENGINE
ALL ELECTRIC








CLEANING CREW XTREME SERIES



Built and designed for those who demand the highest performance. The X-treme series combines the design and engineering, highest quality materials, uncompromising craftsmanship to create a pressure washer that takes every standard of the industry and blasts it out of the water.

Features:
  • Pressure atomizing burner coupled with a cold water wrap coil, schedule 80 steel pipe for a long lasting, highly efficient heating system
  • Oil bath type pumps designed for rugged use and long life
  • Precise chemical metering
  • Stainless steel float tank
  • Rotary electrical switches
  • Enclosed stainless steel control panel
  • High quality single phase motor with dual capcitors
  • Ball bearing pneumatic wheels
  • Easy access fuel tank with replaceable filter
  • Safety relief valve
  • Heavy steel and stainless steel construction
  • 50 of wire braid hose and trigger wand
  • Fuel solenoid for positive oil shut off
  • Temperature control variable from 32 to 200
 Model #   Pressure   GPM   Weight   Motor   Burner (Pressure Atomizing Auto Ignition)
2162T 1600 PSI 2.1 400 lbs. 2.3 HP, 115 V, 1 PH Kero, #1 Dsl; 200,000 BTU
2162TA 1600 PSI 2.1 340 lbs. 2.3 HP, 115 V, 1 PH Kero, #1 Dsl; 170,000 BTU
3112T 1100 PSI 3.0 400 lbs. 2.3 HP, 115 V, 1 PH Kero, #1 Dsl; 315,000 BTU
3202T 2000 PSI 3.0 420 lbs. 4 HP, 230 V, 1 PH Kero, #1 Dsl; 315,000 BTU
3242T 2400 PSI 3.0 425 lbs. 5 HP, 230 V, 1 PH Kero, #1 Dsl; 315,000 BTU
4182T 1800 PSI 4.0 450 lbs. 5 HP, 230 V, 1 PH Kero, #1 Dsl; 434,000 BTU
4232T 2300 PSI 3.7 575 lbs. 6 HP, 230 V, 1 PH Kero, #1 Dsl; 434,000 BTU
4302T 3000 PSI 4.0 590 lbs. 6 HP, 230 V, 1 PH Kero, #1 Dsl; 434,000 BTU
5182T 1800 PSI 4.8 575 lbs. 6 HP, 230 V, 1 PH Kero, #1 Dsl; 560,000 BTU
5232T 2300 PSI 4.8 675 lbs. 8 HP, 230 V, 1 PH Kero, #1 Dsl; 560,000 BTU
5302T 3000 PSI 4.8 685 lbs. 10 HP, 320 V, 3 PH Kero, #1 Dsl; 560,000 BTU

* All 115 volt models have ground fault interrupters standard.

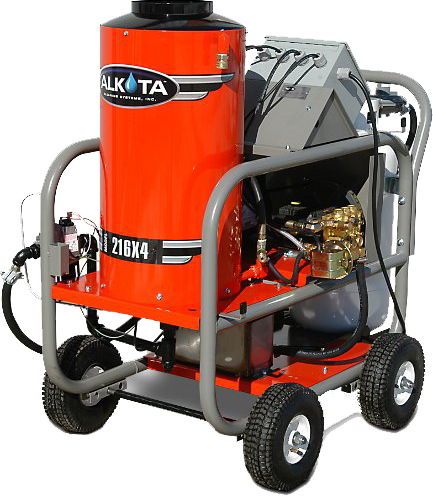

4X4 SERIES XTREME

MOBILITY

Alkota's Hot High Pressure Washers are now even more mobile with the new Four Wheel Series. The X4 Cleaning Crew and the AX4 Tiny Terror can be moved with ease, so you can bring the washer to the job instead of bringing the job to the washer.
OIL FIRED
  • Engineered with oil both type pumps designed for rugged usage
  • Easy access controls
  • Precise chemical metering, stainless steel float tanks and rotary on/off switches
  • Pressure atomizing burner coupled with a cold water wrap provides a highly efficient heating system
  • Perfect for farms, service stations, repair shops, or rental fleets
TAKE YOUR PICK
  • More than a dozen four wheel high pressure washers make it easy to find just the right one for you
  • Choose from six different capacities, ranging from 1.5 GPM to 4.8 GPM
  • Automatic ignition standard
  • All models available in XTreme series with stainless steel
FEATURES
  • 4 tubed pneumatic wheels
  • Adjustable front axle for proper weight distribution
  • Adjustable height push handle
  • Industrial strength 1" tube frame
  • Powder coated paint finish for durability
  • Belt drive pump standard
  • 50' hose, shut off gun and 36" insulated wand
  • Hose reel optional
 Model #   Pressure   GPM   Motor   Burner (Pressure Atomizing Auto Ignition)
216 x 4 1600 PSI 2.0 2.3 HP, 115 V, 1 PH Oil Fired
311 x 4 1100 PSI 3.0 2.3 HP, 115 V, 1 PH Oil Fired
320 x 4 2000 PSI 3.0 4 HP, 220 V, 1 PH Oil Fired
324 x 4 2400 PSI 3.0 5 HP, 220 V, 1 PH Oil Fired
418 x 4 1800 PSI 4.0 5 HP, 220 V, 1 PH Oil Fired
423 x 4 2300 PSI 3.7 6 HP, 220 V, 1 PH Oil Fired
430 x 4 3000 PSI 4.0 8 HP, 220 V, 1 PH Oil Fired
518 x 4 1800 PSI 4.8 6 HP, 220 V, 1 PH Oil Fired
523 x 4 2300 PSI 4.8 8 HP, 220 V, 1 PH Oil Fired
530 x 4 3000 PSI 4.8 10 HP, 220 V, 3 PH Oil Fired





STEAM CLEANERS

Tricycle undercarriage plus the ball bearing pneumatic wheels allow these cleaners to be moved easily even over rough terrain and gravel. Ranging in volume from 2.1 to 5 GPM and pressure from 1000 to 3000 PSI, Alkota provides a washer for everyone's cleaning requirements. Constructed for heavy use, these cleaners are designed with 14 gauge chambers for strength and durability. The units are constructed with condensation drains and stainless steel water tanks to retard and prevent corrosion. Add oil bath pumps with ceramic plungers, precise metered chemical, cold water wrap spiral design, removable coils, and safety relief protection from excessive pressure and you have equipment that will solve your cleaning problems for years. Whatever your needs, Alkota has a cleaner for you. With these units clean single trucks or fleets, industrial complexes, aircraft, farrowing houses or large construction equipment.
PORTABILITY AT ITS BEST

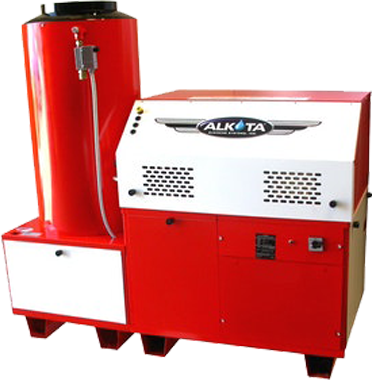

NATURAL/LP

Tackle the biggest cleaning jobs with Alkota's Gas Fired Series of pressure washers. These durable units operate on natural or liquid propane gas for economical and dependable performance.

Our gas fired units are available in three different model types:
Stationary
Our stationary units are popular for their performance and durability. They're perfect for machine and repair shops, farms, hog producers and implement dealers.

Portable
With several of the same design characteristics as our famed Cleaning Crew series, these LP gas fired units give you the portability you need. Our portable units are ideal for restaurants, fast food chains, hospitals and pharmaceuticals.

Big Guys
These stationary units are ready to attack the toughest cleaning chores. They're excellent for truck washes, machine and repair shops, farms, hog producers and implement dealers.

 Features:
  • Stainless steel water tanks prevent rust out on float area
  • Available in natural or liquid propane gas
  • Chambers and frames built from heavy gauge steel to provide rugged durability
  • Engineered to keep components out of the dirt for longer equipment life

 Model #   Pressure   GPM   Burner   Weight   Description   Motor
2161 1600 PSI 2.1 200,000 BTU 550 lbs. Stationary Unit 2.3 HP, 115 V, 1 PH (20 Amp)
2161P-T 1600 PSI 2.1 200,000 BTU 400 lbs. Portable Unit with Ball Bearing Pneumatic Wheels 2.3 HP, 115 V, 1 PH
3111 1100 PSI 3.0 320,000 BTU 550 lbs. Stationary Unit 2.3 HP, 115 V, 1 PH
3201 2000 PSI 3.0 320,000 BTU 575 lbs. Stationary Unit 4 HP, 230 V, 1 PH
3201P-T 1800 PSI 3.0 200,000 BTU 420 lbs. Portable Unit with Ball Bearing Pneumatic Wheels 4 HP, 220 V, 1 PH
3241 2400 PSI 3.0 320,000 BTU 575 lbs. Stationary Unit 5 HP, 230 V, 1 PH
4181 1800 PSI 4.0 350,000 BTU 810 lbs. Stationary Unit 5 HP, 230 V, 1 PH
4231 2300 PSI 3.7 350,000 BTU 815 lbs. Stationary Unit 6 HP, 230 V, 1 PH
4301 3000 PSI 4.0 350,000 BTU 845 lbs. Stationary Unit 8 HP, 230 V, 1 PH
5181 1800 PSI 4.8 490,000 BTU 840 lbs. Stationary Unit 6 HP, 230 V, 1 PH
5231 2300 PSI 5.0 490,000 BTU 845 lbs. Stationary Unit 8 HP, 230 V, 1 PH
5301 3000 PSI 5.0 490,000 BTU 855 lbs. Stationary Unit 10 HP, 230 V, 3 PH
5401 4000 PSI 5.0 490,000 BTU 900 lbs. Stationary Unit 15 HP, 230 V, 3PH, Fuse for 40 Amp
5501 5000 PSI 5.5 490,000 BTU 950 lbs. Stationary Unit 15 HP, 230 V, 3 PH, Fuse for 50 Amp
6181 1800 PSI 6.0 600,000 BTU 910 lbs. Stationary Unit 8 HP, 230 V, 1 PH
6251 2500 PSI 6.0 600,000 BTU 910 lbs. Stationary Unit 10 HP, 230 V, 3 PH
7301 3000 PSI 7.0 720,000 BTU at 4.5 W.C. (manifold)   High Capacity 15 HP, 230/460 V, 3 PH
8151T 1500 PSI 8.0 880,000 BTU 1010 lbs. Stationary Unit 8 HP, 230 V, 3 PH
8201T 2000 PSI 8.0 880,000 BTU; Gas: 1,040,000 BTU 1010 lbs. Stationary Unit 10 HP, 230 V, 3 PH
8251T 2500 PSI 8.0 880,000 BTU; Gas: 1,040,000 BTU 1010 lbs. Stationary Unit 15 HP, 230 V, 3 PH
8351 3500 PSI 8.0 720,000 BTU at 4.5" W.C. (manifold)   High Capacity 20 HP, 230/460 V, 3 PH
10000 1000 PSI 10.0 Oil: 945,000 BTU 1550 lbs. Stationary Unit 7.5 HP, 230 V/460 V, 3 PH
10201 2000 PSI 10.0 920,000 BTU at 4" W.C. (manifold)   High Capacity 15 HP, 230/460 V, 3 PH
10301 3000 PSI 10.0 920,000 BTU at 4" W.C. (manifold)   High Capacity 20 HP, 230/460 V, 3 PH
22000 2000 PSI 10.0 Oil: 945,000 BTU 2250 lbs. Stationary Unit 15 HP, 230 V/460 V, 3 PH

* All 115 volt models have ground fault interrupters standard.
** All items except models 5401 and 5501 are not stocked; lead time is 2-4 weeks.





GAS ENGINE SERIES


3205-2T
Pictured with optional hose reel
Designed with the operator in mind, Alkota's Gas & Diesel Driven pressure washers go where they're needed without any worries about electrical supply. The water pump and burner are driven by the engine, with an automatic ignition providing spark to ignite the burner.

By combining the best brand name components, heavy steel construction, and quality features, Alkota's Gas & Diesel Driven machines are ideal for all mobile commercial and industrial cleaning.
 Model #   Pressure   GPM   HP   Engine   Tank   Weight   Burner (Pressure Atomizing Auto Ignition)
3205-2T 2000 PSI 3.0 5.5 Honda Fuel: 6.5 Gallon 475 lbs. Kero, #1 Diesel; 270,000 BTU
3255 2500 PSI 3.0 9 Honda Fuel: 11 Gallon; Gas: 1.4 Gallon 530 lbs. Kero, #1 Diesel; 230,000 BTU; 12 Volt
4305-2T 3000 PSI 4.0 13 Honda Fuel: 7 Gallon; Gas: 1.7 Gallon 530 lbs. Kero, #1 Diesel; 375,000 BTU
4355-H 3500 PSI 4.0 13 Honda Fuel: 11 Gallon; Gas: 1.7 Gallon 575 lbs. Kero, #1 Diesel; 230,000 BTU; 12 Volt
4405-F 4000 PSI 4.0 16 Vanguard Fuel: 11 Gallon; Gas: 2.7 Gallon 560 lbs. Kero, #1 Diesel; 230,000 BTU; 12 Volt
4405E 4000 PSI 4.0 16 Vanguard Fuel: 9.5 Gallon; Gas: 2.7 Gallon 850 lbs. Kero #1, #2 Diesel; 350,000 BTU; 12 Volt
4405G 4000 PSI 4.0 20 Honda Fuel: 11 Gallon; Gas: 2.7 Gallon 870 lbs. Kero, #1 Dsl; 230,000 BTU; 12 Volt
5305A 3000 PSI 5.0   Optional; 18 HP Twin Cylinder Briggs & Stratton, Kohler, or 15 HP Hatz Diesel Engine, Electric Start Fuel: 12 Gallon; Gas: 6 Gallon 960 lbs. Kero, #1 Diesel; 535,000 BTU
5305EA 3000 PSI 5.0 16 Vanguard Fuel: 9.5 Gallon; Gas: 2.7 Gallon 850 lbs. Kero, #1, #2 Diesel; 350,000 BTU; 12 Volt
5305EB 3000 PSI 5.0 16 Vanguard Fuel: 9.5 Gallon; Gas: 2.7 Gallon 850 lbs. Kero, #1, #2 Diesel; 350,000 BTU
5355 3500 PSI 5.3 20 Kohler Command Fuel: 12 Gallon; Gas: 6 Gallon 950 lbs. Kero, #1 Diesel; 612,000 BTU
5355J 3500 PSI 5.0 20 Honda Fuel: 12 Gallon; Gas: 2.7 Gallon 870 lbs. Kero, #1 Dsl; 350,000 BTU
5357 3500 PSI 5.0 23 Lombardini Fuel: 27 Gallon 1000 lbs. Kero, #1 Dsl; 490,000 BTU
5405 4000 PSI 4.5 20 Kohler Command Fuel: 12 Gallon; Gas: 6 Gallon 950 lbs. Kero, #1 Diesel; 535,000 BTU
5505 5000 PSI 4.8 25 Kohler, Overhead Valve, Oil Alert Fuel: 16.75 Gallon; Gas: 10.5 Gallon 1058 lbs. Kero, #1, #2 Diesel; 490,000 BTU; 110 Volt; 1 PH
5507 5000 PSI 5.0 23 Lombardini Fuel: 27 Gallon 1100 lbs. Kero, #1 Dsl; 490,000 BTU
8305 3000 PSI 8.0 25 Kohler, Overhead Valve, Oil Alert Fuel: 16.75 Gallon; Gas: 10.5 Gallon 895 lbs. Kero, #1 Dsl; 490,000 BTU





ALL ELECTRIC

Alkota's "All Electric Series" has been specifically engineered for areas where open flame is a problem, space is valuable, noise is unacceptable and where hot high pressure cleaning capabilities are necessary. Gallonages run from 2 to 8 gallons per minute while pressures are from 1000 PSI to 2000 PSI; a 100 gallon per hour steam cleaner is also available. These models operate completely on electricity and are available in either 240 volt or 480 volt, 3 phase power. Hot high pressure with precise metered chemical make these units ideal for use in restaurants, hospitals, food processing plants and industrial centers.

All components are enclosed to protect against wet environment. If your cleaning requirements demand a smokeless and fumeless environment, Alkota's All Electric cleaning machines are your first choice.

Printer-friendly page

MODEL

2148

3158

4208

4308

108

Gallonage

2 GPM

3 GPM

3.5 GPM

3.5 GPM

100 GPH

Pressure

1400 PSI

1500 PSI

2000 PSI

3000 PSI

400 PSI

Pump

Duplex, Oil Bath Crankcase, Positive Displacement

Triplex, Oil Bath Crankcase, Positive Displacement

Triplex, Oil Bath Crankcase, Positive Displacement

Triplex, Oil Bath Crankcase, Positive Displacement

Triplex, Oil Bath Crankcase, Positive Displacement

Motor

2 HP

3 HP

5 HP

7.5 HP

3/4 HP

Water Heater

Replaceable, 3 - 10,000 Watt, Stainless Steel Immersion Heater, Temperature Control - Standard

Replaceable, 6 - 10,000 Watt, Stainless Steel Immersion Heater, Temperature Control - Standard

Replaceable, 6 - 10,000 Watt, Stainless Steel Immersion Heater, Temperature Control - Standard

Replaceable, 6 - 10,000 Watt, Stainless Steel Immersion Heater, Temperature Control - Standard

Replaceable, 6 - 10,000 Watt, Stainless Steel Immersion Heater, Temperature Control - Standard

Power Requirements

240 V, 3 PH (80 Amps)

240 V, 3 PH (155 Amps)
480 V, 3 PH (77 Amps)

240 V, 3 PH (155 Amps)
480 V, 3 PH (77 Amps)

240 V, 3 PH (160 Amps)
480 V, 3 PH (80 Amps)

240 V, 3 PH (155 Amps)
480 V, 3 PH (77 Amps)

Heat Rise

110 F

1400 F

1000 F

1000 F

2500 F

Wand

Trigger-Standard

Trigger-Standard

Trigger-Standard

Trigger-Standard

Open-Standard

Hose

3/8" x 50'

3/8" x 50'

3/8" x 50'

3/8" x 50'

3/8" x 50'

Chemical

Precise Metered

Precise Metered

Precise Metered

Precise Metered

Precise Metered

Float Tank

Stainless Steel Float Controlled

Stainless Steel Float Controlled

Stainless Steel Float Controlled

Stainless Steel Float Controlled

Stainless Steel Float Controlled

Steam Capacity

N/A

N/A

N/A

N/A

100 GPH

Options

Wheel Kit

Wheel Kit

Wheel Kit

Wheel Kit

Wheel Kit

Dimensions

34" L, 24" W, 37" H

34" L, 24" W, 37" H

34" L, 24" W, 37" H

34" L, 24" W, 37" H

34" L, 24" W, 37" H

Weight

335 lBS

375 lBS

375lBS

385 lBS

360 lBS
